SKU:
ST-1NBL002
Compara

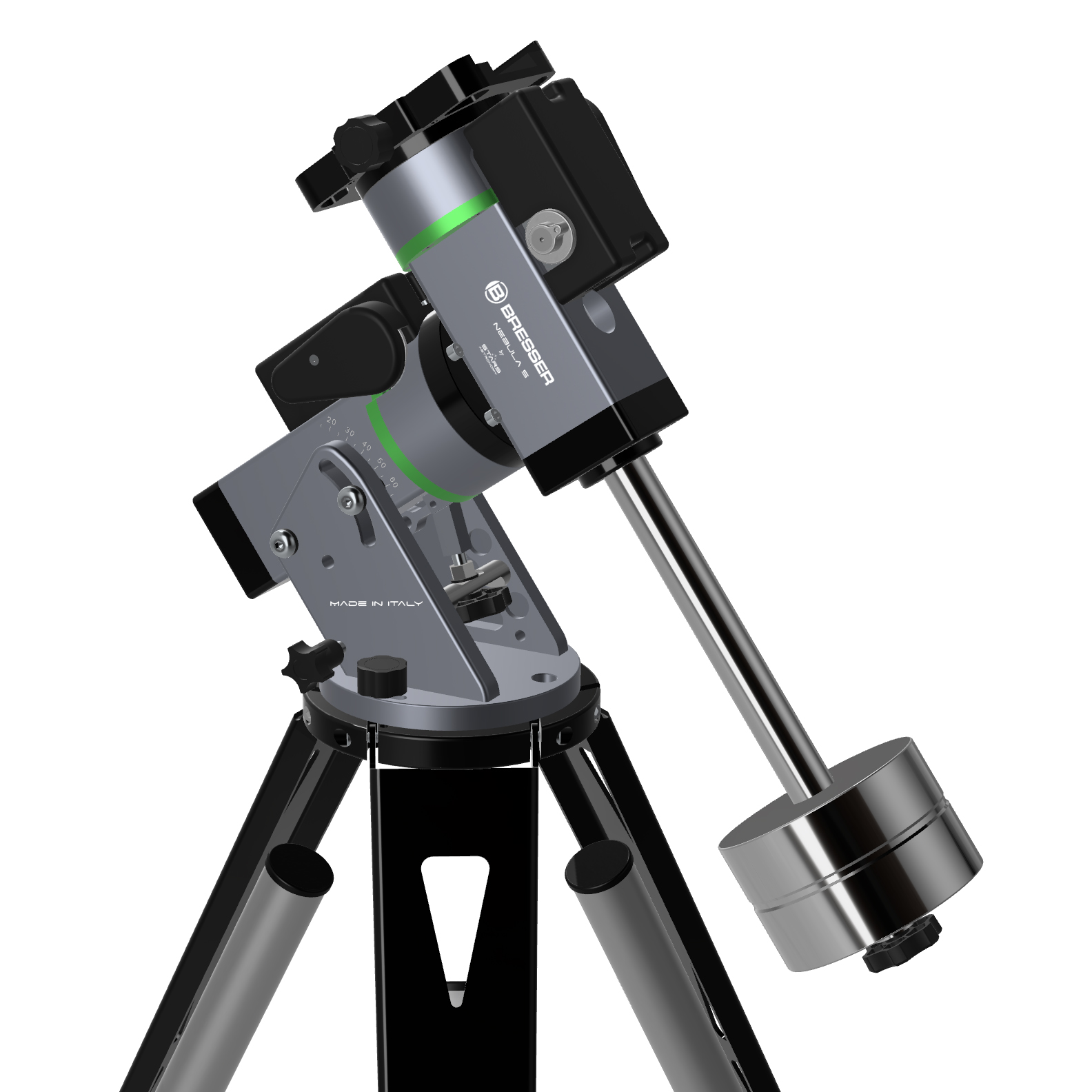

Nebula 6
| Mounting type: | EQ and AZ |
| Payload (excl. counterweight): | 18kg EQ / 25kg AZ Mode |
| Mount saddle: | Losmandy & Vixen |
| Weight of mount: | 7,5 kg |
| Material: | Aluminium CNC milled |
| External treatment: | anodised grey/green |
| Counterweights: | 1 x 6kg |
| Diameter ball bearing DEC (mm): | 72 mm |
| Diameter ball bearing RA (mm): | 72 mm |
| Worm wheel diameter DEC (mm): | Ā 86 mm |
| Worm wheel diameter RA (mm): | 86 mm |
| Worm wheel teeth DEC: | Ā 172 |
| Worm wheel teeth RA: | Ā 172 |
| Diameter worm shaft DEC: | 16 mm |
| Diameter worm shaft RA: | Ā 16 mm |
| Diameter right ascension axis: | Ā 50 mm |
| Diameter declination axis: | 50 mm |
| Diameter counterweight rod: | Ā 25 mm |
| Worm shaft material: | Brass |
| Material worm wheels: | Aluminium |
| Material of right ascension axis: | Aluminium |
| Material of declination axis: | Aluminium |
| Counterweight rod length: | 215 mm |
| Azimuth fine adjustment Adjustment range: | Ā 10Ā° |
| Input voltage (volts): | 12 V |
| Required amperage of the power supply: | Ā 5 Amp. |
| Type of stron connection: | Ā 5.5 x 2.1 mm DC |
| Type of motors | Ā Stepper motor |
| Interfaces: | Ā 1 x Eth, 2 x USB 3, 2 x USB 2, 1 x Power connection, 1 x Keypad, 2 x Motors |
| Goto: | Ā yes |
| Weight | 20 kg |
|---|---|
| Dimensions | 50 × 60 × 40 cm |
| Color | Blue |
| Capacity | 20 Kg |
